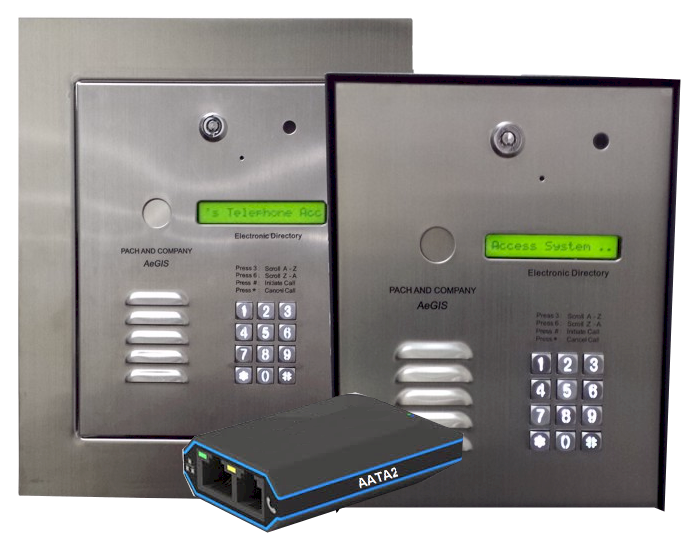

AeGIS 7000V SERIES
VOICE OVER IP TELEPHONE ENTRY SYSTEM


cut-sheet quick guide manual


250 tenants and 250 codes

Free Phone Service” using Google Voice in the USA and Canada
Google Logo is registered trademarks of Google Inc.


Single relay

Large LCD for easy reading

Postal lock ready

Backlit Keypad

Brushed stainless steel, dark gray powder coated back box

Surface and Flush Mount.

Indoor or Outdoor, AATA2 must be in protective environtment.
UPMGBS is needed for for QATA2 for out door installation


24 months warranty



FEATURES PART#: AeGIS 7000V
Surface Mount
PART#: AeGIS 7000VFF
Flush Mount
Input Power 12VAC/12VDC Transfomer Included 12VAC/12VDC Transfomer Included
Current Consumption 700mA 7000mA
Operating Temperature 10ºF to 145ºF 10ºF to 145ºF
Liquid Crystal Display 16 x 1, Viewing area 99mm x 13mm 16 x 1, Viewing area 99mm x 13mm
Tenant Capacity 250 250
Code Capacity 250 250
AATA2 Voip included included
Dry Contact Relay 1 1
Remote Access yes yes
Postal Lock ready Yes Yes
Auxilirary Input 1 1
Dimension (H x W x D) 10-13/16” x 8-5/8” x 3-3/4” 14-5/16” x 12-1/8” x 2-5/8” (Total Dimension)
11-1/8” x 8-11/16” x 2-5/8” (Inside Ring)
ACCESSORIES
UVPC: Analog color camera AHP5: Heater-pad
USP1: AC and Telephone surge protector UPM1S: 42” H Single arm pedestal
USP2L: Surge and Lightning protection UPM2: Dual vertical arm pedestal
UBAT1: 12VDC 4.5 Ahr backup battery UPM5: Dual horizontal arm pedestal
IREXIT: Infrared exit switch UPM6L: 64” H Single arm pedestal
UPMGBS: Small gang box 7" (H) X 7" (W) X 2.5" (D)
