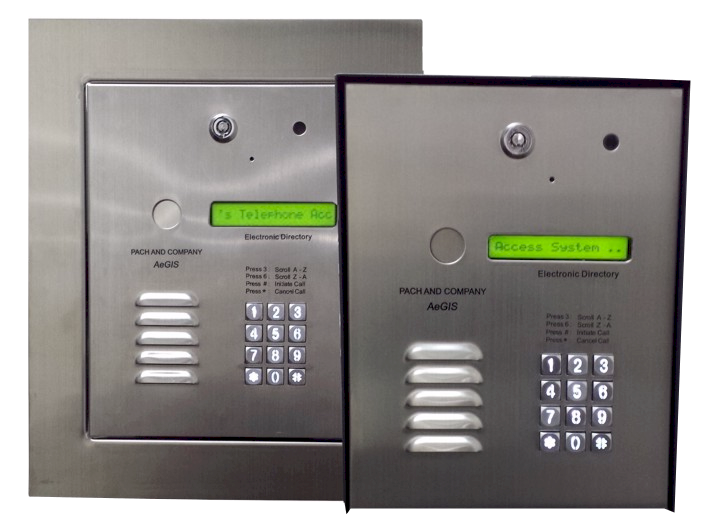

AeGIS 8000P SERIES
ANALOG DIAL TONE DIAL-UP PROGRAMMING TELEPHONE ENTRY SYSTEM



cut-sheet quick guide installation manual
software manual    software download



250 tenants and 250 codes

Dual relay

Large LCD for easy reading

Built-in modem

Postal lock ready

Backlit Keypad

Brushed stainless steel, dark gray powder coated back box

Surface and Flush Mount.

Indoor or Outdoor



24 months warranty



FEATURES PART#: 8250P
Surface Mount
PART#: 8250FFP
Flush Mount
Input Power 12VAC/12VDC Transfomer Included 12VAC/12VDC Transfomer Included
Current Consumption 700mA 700mA
Operating Temperature 10ºF to 145ºF 10ºF to 145ºF
Liquid Crystal Display 16 x 1, Viewing area 99mm x 13mm 16 x 1, Viewing area 99mm x 13mm
Tenant Capacity 250 250
Code Capacity 250 250
Modem built-in built-in
Event Buffer 600 600
Dry Contact Relay 2 2
Postal Lock ready Yes Yes
Auxilirary Input 1 1
Dimension (H x W x D) 10-13/16” x 8-5/8” x 3-3/4” 14-5/16” x 12-1/8” x 2-5/8” (Total Dimension)
11-1/8” x 8-11/16” x 2-5/8” (Inside Ring)
ACCESSORIES
UVPC: Analog color camera AHP5: Heater-pad
USP1: AC and Telephone surge protector UPM1S: 42” H Single arm pedestal
USP2L: Surge and Lightning protection UPM2: Dual vertical arm pedestal
UBAT1: 12VDC 4.5 Ahr backup battery UPM5: Dual horizontal arm pedestal
IREXIT: Infrared exit switch UPM6L: 64” H Single arm pedestal
AMDM: Dial-up Modem for Windows
