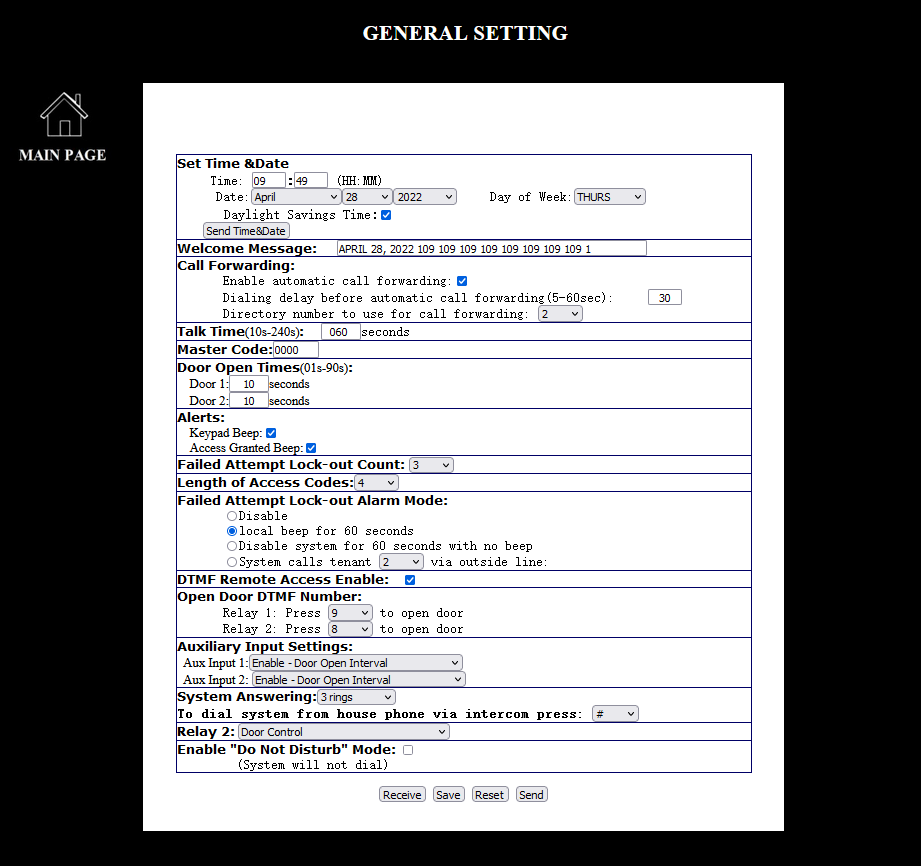

| GENERAL SETTING |
| |
|
|
| |
 |
|
| |
|
|
| |
[Set Time and
Date]
Set Local Time, Date (24 hours format) and Day of the Week, check the
box if the Day Light Saving Time is applied.
Click
 to send
the time and date to
the Telephone Entry System
|
|
| |
[Welcome Message]
Must enter all 36 characters. Repeat the welcome message if less than
36 characters or enter ***. For example:
**WELCOME TO PACH AND COMPANY INC.** |
|
| |
|
|
| |
[Call Forwarding] |
|
| |
Enable automatic
call forwarding: must be checked for all models,
otherwise the system will not call out. |
|
| |
Dialing delay
before automatic call forwarding (5-60 seconds): 5 seconds is
a normal delay for an automatic call forwarding. This feature is only
applicable on
QR5 QR5IP and Q5VOIP Series must be in
intercom mode. |
|
| |
Directory number
to use for call forwarding: Select an automatic call forwarding
directory 0-9. This feature is only applicable on QR5, QR5IP and Q5OIP
Series. |
|
| |
|
|
| |
[Talk Time 10s-240s] |
|
| |
The length of talk time
between the visitor and tenant. |
|
| |
|
|
| |
 |
|
| |
|
|
| |
[Master Code] |
|
| |
0000 is the
default setting for the
telephone entry system master code. The Master Code is used to login to
the telephone entry system via the keypad. |
|
| |
|
|
| |
[Door Open Times 01s-90s] |
|
|
12
seconds is the default door open times setting. |
|
| |
|
|
| |
[Alerts] |
|
| |
Keypad Beep: The system's
keypad beeps if press |
|
| |
Access granted Beep: The
system beeps if door(s) give access to the visitor or tenant |
|
| |
|
|
| |
[Fail Attempt Lock-out Count
1-9 times] |
|
| |
3 times is
the default setting. If invalid access codes or cards were used and
reach the number of times as on the setting selection, the telephone
entry system will beep and disable for 60 seconds. |
|
| |
|
|
| |
|
|
| |
|
|
| |
[Length of Access Codes 4-8 digits] |
|
| |
4 digit
is the default setting for the access code |
|
| |
|
|
| |
[Failed Attempt Lock-out
Alarm Mode] |
|
| |
Disable, disable the
system for 60 seconds with no beep
Local beep for 60 seconds, the telephone entry will be
disable and beep for 60 seconds
Disable system for 60 seconds with no beep, disable the
telephone entry system with no beep
System calls tenant via outside line, the telephone
entry will call and send an alert tones to a homeowner, only apply to
QR5, QR5IP and Q5VOIP Series |
|
|
|
|
| |
[DTMF Remote Access Enable] |
|
| |
This setting must be
checked to open the door(s) remotely |
|
| |
|
|
| |
[Open Door DTMF Number] |
|
| |
Relay 1 (door 1): select
1-9, 9 is the default setting |
|
| |
Relay 2 (door 2) select
1-9, 8 is the default setting |
|
| |
"Do not select identical number
for Relay 1 and Relay 2 |
|
| |
|
|
| |
|
|
| |
|
|
| |
[Auxiliary Input Settings]
for alarm system, exit switch, postal lock or any input devices with
dry contact output |
|
| |
Aux Input 1:
disable by default
enable control by relay 1 open interval, enable control by the auxiliary
input 1 |
|
| |
Aux Input 2:
disable by default,
enable control by relay 2 open interval, enable control by the auxiliary
input 2 |
|
| |
|
|
| |
[System Answering]
Disable, 1-9 rings. The system will not answer an incoming calls if
disabled. |
|
| |
|
|
| |
[To dial
system from house phone via intercom press] |
|
| |
# is the
default setting. If # does
not work select *, only apply to QR5, QR5IP and Q5VOIP Series, must be
installed on intercom mode) |
|
| |
|
|
| |
[Enable "Do Not Disturb" Mode] |
|
| |
If enabled, the telephone
entry system will
not call the tenants but the rest of the features will still work. |
|
| |
|
|
| |
[Relay 2] |
|
| |
Door Control
is the default setting |
|
| |
Simultaneous with Relay 1 |
|
| |
Toggle Via DTMF 4=ON, 6:
OFF |
|
| |
Trigger by attempt lock-out |
|
| |
|
|
| |
Receiving the Time and Date and General Setting from the system
|
|
| |
Saving the General Setting before sending it to the system
|
|
| |
Resetting the General Setting to a factory default
|
|
| |
Sending the General Setting to the Telephone Entry System
|
|
| |
|
|
| |
|
|
