TIME ZONE
	A Time Zone is to restrict an access code and access card. Three time zones can be assigned to each access code and access card. 10 Time Zone schedules can be programmed

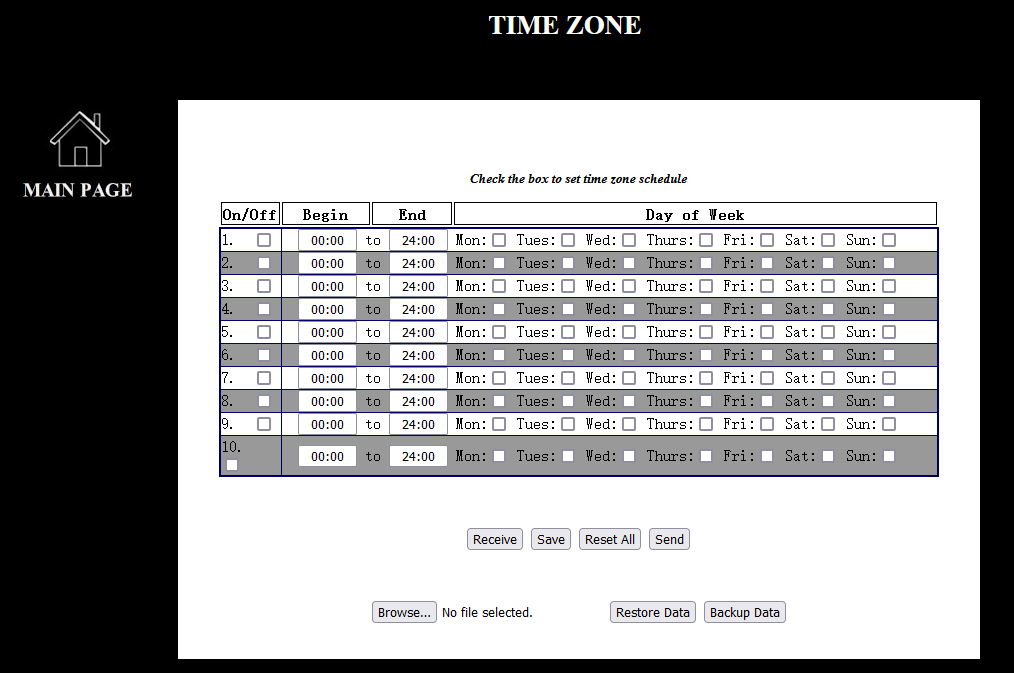

	Figure 1
	Figure 2

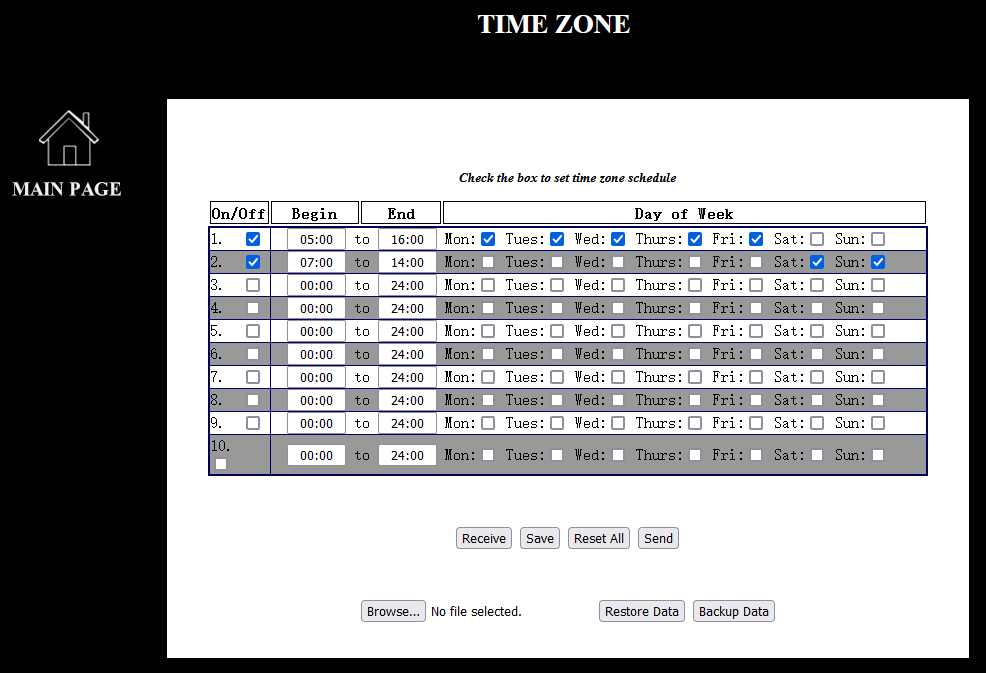

	Adding time zone(s), see figure 2 (Check Schedule 1-10) Select begin time and end time (24 hour format), for example (1) 05:00 - 16:00 Monday - Friday (2) 07:00 - 14:00 Saturday- Sunday Saving the time zones
	Sending the time zones to the telephone entry system
	Receiving the time zones from the telephone entry system.
	Resetting the Time Zone table to factory default and click
	Backing up the Time Zone table. File must be saved as N5Timezone_config
	Browsing the N5Timezone_config, then
	Restoring the Time Zone table.
